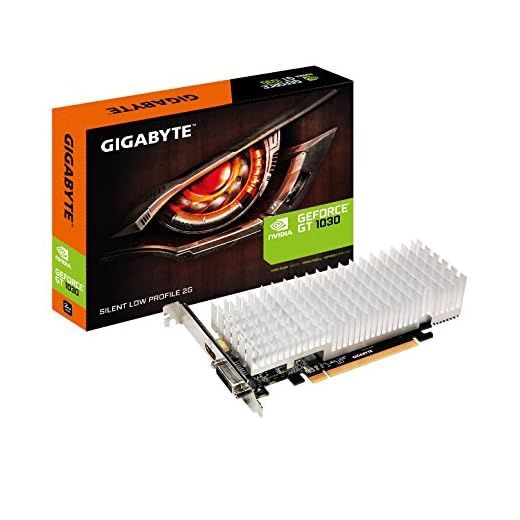

Gigabyte GeForce GT 1030 Silent Low Profile 2G (GV-N1030SL-2GL)
- Cores: 384 Cuda Cores
- Base Clock: 1227 MHz (Gaming Mode)
- Boost Clock: 1468 MHz (Gaming Mode)
- Memory: 2GB
- VR Ready: NO
- Resolutions Supported: Up To 4096x2160 @ 60 Hz
Gigabyte GeForce GT 1030 Silent Low Profile 2G Features
Accelerate your entire PC experience with the fast, powerful Gigabyte GeForce GT 1030 Silent Low Profile 2G graphics card. Its award-winning NVIDIA Pascal architecture, powerful graphics engine, and state-of-the-art technologies give you the performance upgrade you need to drive today’s most demanding PC applications.
What We think
The Gigabyte GeForce GT 1030 Silent Low Profile 2G is a decent card. Whilst it won’t get you 60fps at maximum settings in most games, it’s great card for general purpose use and some lighter games. The Gigabyte GeForce GT 1030 Silent Low Profile 2G is great for smaller PC cases as well as being fairly cheap. This is due to the fact that the card is very small and only takes up 1 slot. Additionally no power connectors are required so it will work in most computers.
In some games we tested the Gigabyte GeForce GT 1030 Silent Low Profile 2G holds up quite well. In GTA 5 we used high settings with various options turned off (No AA, low population and med shadows). We achieved a solid 60fps most of the time with the ocassional dip into the high 30s and 40s. There are some alternatives such as the rx 550 which you may be able to get cheaper.
More Nvidia Cards.
Specifications
Purchase This Card
| Amazon | View Price At Amazon |
General
| Manufacturer | Gigabyte |
| Type | Desktop |
| Series | GeForce 10 |
| Variant | GT 1030 |
| GPU Architecture | Pascal |
| Code Name | GP108-300-A1 |
| Fabrication Process | Samsung 14nm |
| Die Size | 74 mm² |
| Base Clock | 1227 MHz (Gaming Mode) | 1252 MHz (OC Mode) |
| Boost Clock | 1468 MHz (Gaming Mode) | 1506 MHz (OC Mode) |
| Transistor Amount | 1.8 Billion |
Cores & Texture Config
| Cores | 384 CUDA CORES |
| Texture Units | 24 |
| ROPs | 8 |
| L2 Cache | 0.5 MB |
Memory
| Memory Size | 2GB |
| Memory Type | GDDR5 |
| Memory Clock | 1502 MHz |
| Memory Clock Effective | 6 Gbps |
| Memory Interface Width | 64 bit |
| Memory Bandwidth | 48 GB/s |
Performance
| Half Precision FP16 | 0.017616 TFLOPS |
| Single Precision FP32 | 1.127424 TFLOPS |
| Double Precision FP64 | 0.035232 TFLOPS |
Floating Point Operations Per Clock Cycle
| Half Precision FP16 | 1/32 |
| Single Precision FP32 | 2 |
| Double Precision FP64 | 1/16 |
Fillrate
| Texture (GT/s) | 35.232 |
| Pixel (GP/s) | 11.744 |
Technologies
| DirectX® Version | 12 |
| G-Sync/FreeSync | |
| OpenCL | 1.2 |
| OpenGL | 4.5 |
| Shader Model | 5.0 |
| Vulkan | 1.3 |
| SLI/Crossfire Ready | |
| VR Ready | |
| RGB Lighting | |
| Extra Technologies | NVIDIA GPU Boost |
Connectivity
| Maximum resolution | 4096x2160 @ 60 Hz |
| Max HDMI Resolution | 4096x2160 @ 60 Hz |
| Display Port | No |
| HDMI | 2.0b x1 Low Profile bracket included |
| USB-C | No |
| Dual Link DVI | No |
| Single Link DVI | DVI-D x1 |
| VGA | No |
Requirements
| Interface | PCI-E 3.0 x16 |
| Power Connectors | None |
| PSU Recommendation | 300 W |
| Graphics Card Power | 30 W |
Dimensions
| Length | 17.4 cm (6.85") |
| Width | 6.89 cm (2.71") |
| Height | 3.59 cm (1.41") |
| Slot Width | 1 Slot |
Extra Information
| Price (at release) | $79 USD |
| Weight | 0.54 kg |
| Released | 17 May, 2017 |
