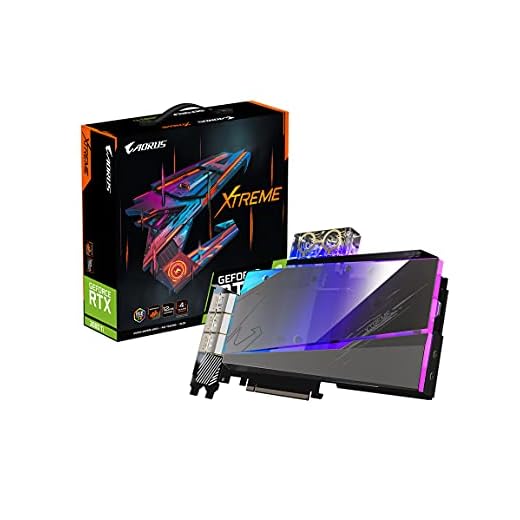

Gigabyte AORUS GeForce RTX 3080 Ti XTREME WATERFORCE WB 12G (GV-N308TAORUSX WB-12GD)

Gigabyte AORUS GeForce RTX 3080 Ti XTREME WATERFORCE WB 12G (GV-N308TAORUSX WB-12GD)

SKU: Gigabyte-Aorus-RTX-3080Ti-Xtreme-WB-12GB
Brand: Gigabyte
Category: Graphics Cards
  • Cores: 10240 CUDA CORES
  • Base Clock: 1365 MHz
  • Boost Clock: 1770 MHz
  • Memory: 12GB GDDR6X
  • VR Ready: YES
  • Resolutions Supported: 7680x4320

GPUSpecs's Rating

The rating given by GPUSpecs

8.5
  • Speed 9 / 10
  • Price 7 / 10
  • Performance 9 / 10
  • Design 9 / 10

Gigabyte AORUS GeForce RTX 3080 Ti XTREME WATERFORCE WB 12G Features

The Gigabyte Aorus GeForce RTX 3080 Ti XTREME WATERFORCE WB 12G is the new high-end gaming card for 27” 144Hz+ monitor! Powered by NVIDIA Ampere Streaming Multiprocessors, second generation RT cores and third generation tensor cores. The product features AORUS leak detection WaterBlock cooling system with RGB Fusion 2.0 that has an innovative design of 6 outputs which enable you to enjoy games without any interruption. This Gigabyte card also comes with 4 years warranty and protection metal back plate! Experience the ultimate detailing while playing in AORUS mode!

The Gigabyte AORUS GeForce RTX 3080 Ti XTREME WATERFORCE WB 12G with NVIDIA Ampere Streaming Multiprocessors 2nd Generation RT Cores 3rd Generation Tensor Cores and GDDR6X 384-bit memory interface is a fantastic card for enthusiasts of computer games. It comes with an RGB Fusion display, protection metal back plate and water block cooling system that ensures it keeps cool even during the most intensive gaming sessions.

View More Gigabyte WaterForce Graphics Cards Here.

Specifications

Purchase This Card

Amazon View Price At Amazon

General

Manufacturer Gigabyte
Type Desktop
Series GeForce 30
Variant RTX 3080 Ti
GPU Architecture Ampere
Code Name GA102-225-A1
Fabrication Process Samsung 8nm
Die Size 628.4 mm²
Base Clock 1365 MHz
Boost Clock 1770 MHz
Transistor Amount 28.3 Billion

Cores & Texture Config

Cores 10240 CUDA CORES
Texture Units 320
ROPs 112
Ray Tracing Cores 80
Tensor Cores 320
Compute Units -
L2 Cache 6MB
Infinity Cache -

Memory

Memory Size 12GB
Memory Type GDDR6X
Memory Clock 1188 MHz
Memory Clock Effective 19 Gbps
Memory Interface Width 384-bit
Memory Bandwidth 912.4 GB/s

Performance

Half Precision FP16 36.2496 TFLOPS
Single Precision FP32 36.2496 TFLOPS
Double Precision FP64 0.5664 TFLOPS

Floating Point Operations Per Clock Cycle

Half Precision FP16 2
Single Precision FP32 2
Double Precision FP64 1/32

Fillrate

Texture (GT/s) 566.4
Pixel (GP/s) 198.24

Technologies

DirectX® Version 12
G-Sync/FreeSync
OpenCL 2.0
OpenGL 4.6
Shader Model 6.5
Vulkan 1.3
SLI/Crossfire Ready
VR Ready
RGB Lighting
Extra Technologies Ray Tracing Cores 2nd gen, Tensor Cores 3rd gen, NVIDIA DLSS, PCI Express Gen 4, NVIDIA GeForce Experience, NVIDIA Ansel, NVIDIA FreeStyle, NVIDIA ShadowPlay, NVIDIA Highlights, Game Ready Drivers, NVIDIA Studio Drivers, NVIDIA GPU Boost

Connectivity

Maximum resolution 7680x4320
Max HDMI Resolution 7680x4320 @ 60Hz
Max DP Resolution 7680x4320 @ 120Hz
Display Port 3 x 1.4a
HDMI 2 x 2.1 and 1 x 2.0
USB-C No
Dual Link DVI No
Single Link DVI No
VGA No

Requirements

Interface PCIe 4.0 x16
Power Connectors 2 x 8 pin
PSU Recommendation 750W
Graphics Card Power 350W

Dimensions

Length 25.2 cm (9.92")
Width 16.3 cm (6.42")
Height 2.9 cm (1.14")
Slot Width 2 Slot

Extra Information

Price (at release) -
Weight 6.09 pounds (2.7kg)
Released 03 June, 2021
