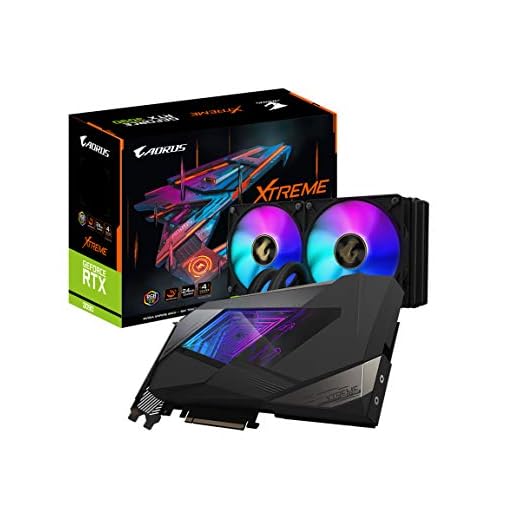

Gigabyte AORUS GeForce RTX 3090 XTREME WATERFORCE 24G (GV-N3090AORUSX W-24GD)

Gigabyte AORUS GeForce RTX 3090 XTREME WATERFORCE 24G (GV-N3090AORUSX W-24GD)

SKU: Gigabyte-Aorus-RTX-3090-Xtreme-24GB
Brand: Gigabyte
Category: Graphics Cards
  • Cores: 10496 CUDA CORES
  • Base Clock: 1395 MHz
  • Boost Clock: 1785 MHz
  • Memory: 24GB GDDR6X
  • VR Ready: YES
  • Resolutions Supported: 7680x4320

GPUSpecs's Rating

The rating given by GPUSpecs

8.3
  • Speed 9 / 10
  • Price 6 / 10
  • Performance 10 / 10
  • Design 8 / 10

Gigabyte AORUS GeForce RTX 3090 XTREME WATERFORCE 24G Features

Gigabyte AORUS GeForce RTX 3090 XTREME WATERFORCE 24G is the ultimate GPU for extreme gamers, combining exquisite gaming performance and luxurious cooling. Powered by NVIDIA Ampere Streaming Multiprocessors 2nd Generation RT Cores, 3rd Generation Tensor Cores, Gigabyte AORUS GeForce RTX 3090 XTREME WATERFORCE has an integrated GDDR6X 384-bit memory interface with 240mm radiator and 2x 120mm ARGB fans to provide excellent heat dissipation. It also provides 6 Outputs where you can connect up to six displays simultaneously without any adapters required ( HDMI x3 / DisplayPort x3). It also has a Luxury Protection Metal Back Plate.

View other Gigabyte Aorus Waterforce Cards here.

Specifications

Purchase This Card

Amazon View Price At Amazon

General

Manufacturer Gigabyte
Type Desktop
Series GeForce 30
Variant RTX 3090
GPU Architecture Ampere
Code Name GA102-300-A1
Fabrication Process Samsung 8nm
Die Size 628.4 mm²
Base Clock 1395 MHz
Boost Clock 1785 MHz
Transistor Amount 28.3 Billion

Cores & Texture Config

Cores 10496 CUDA CORES
Texture Units 328
ROPs 112
Ray Tracing Cores 82
Tensor Cores 328
Compute Units -
L2 Cache 6MB
Infinity Cache -

Memory

Memory Size 24GB
Memory Type GDDR6X
Memory Clock 1219 MHz
Memory Clock Effective 19.5 Gbps
Memory Interface Width 384-bit
Memory Bandwidth 936.2 GB/s

Performance

Half Precision FP16 37.47072 TFLOPS
Single Precision FP32 37.47072 TFLOPS
Double Precision FP64 0.58548 TFLOPS

Floating Point Operations Per Clock Cycle

Half Precision FP16 2
Single Precision FP32 2
Double Precision FP64 1/32

Fillrate

Texture (GT/s) 585.48
Pixel (GP/s) 199.92

Technologies

DirectX® Version 12
G-Sync/FreeSync
OpenCL 2.0
OpenGL 4.6
Shader Model 6.5
Vulkan 1.3
SLI/Crossfire Ready
VR Ready
RGB Lighting
Extra Technologies Ray Tracing Cores 2nd Gen, Tensor Core 3rd Gen, NVIDIA DLSS, PCI Express Gen 4, NVIDIA GeForce Experience, NVIDIA Ansel, NVIDIA FreeStyle, NVIDIA ShadowPlay, NVIDIA Highlights, Game Ready Drivers, NVIDIA Studio Drivers, NVIDIA GPU Boost, Vulkan RT API, NVIDIA Encoder 7th Gen, NVIDIA Decoder 5th Gen

Connectivity

Maximum resolution 7680x4320
Max HDMI Resolution 7680x4320
Max DP Resolution 7680x4320
Display Port 3 x 1.4a
HDMI 2 x 2.1 and 1 x 2.0
USB-C No
Dual Link DVI No
Single Link DVI No
VGA No

Requirements

Interface PCIe 4.0 x16
Power Connectors 2 x 8-pin
PSU Recommendation 750 W
Graphics Card Power 350 W

Dimensions

Length 25.2 cm (9.92")
Width 13.5 cm (5.31")
Height 4 cm (1.57")
Slot Width 2 Slot

Extra Information

Price (at release) -
Weight 6.09 pounds (2.7kg)
Released 24 September, 2020

Price History

Price History for GIGABYTE AORUS GeForce RTX 3090 Xtreme WATERFORCE 24G Graphics Card, WATERFORCE All-in-One...

Statistics

Current Price $1,078.26 May 22, 2024
Highest Price $2,480.25 November 25, 2023
Lowest Price $1,078.26 May 22, 2024
Since July 10, 2023

Last price changes

$1,078.26 May 22, 2024
$1,167.37 May 15, 2024
$1,238.66 May 8, 2024
$1,390.60 April 17, 2024
$1,473.62 April 14, 2024
Create Your Free Price Drop Alert!
Set Alert for GIGABYTE AORUS GeForce RTX 3090 Xtreme WATERFORCE 24G Graphics Card, WATERFORCE All-in-One... - $1,078.26

Reviews

  • Be the first to add a Review

    Please post a user review only if you have / had this product.

  • Rate this Product

  • 5
  • 5
  • 5
  • What do you feel about Design and build quality of this device?
    5
  • 6 / 10 based on your selection

Videos

Disclaimer Note

The information provided is for reference only and may not be 100% accurate
